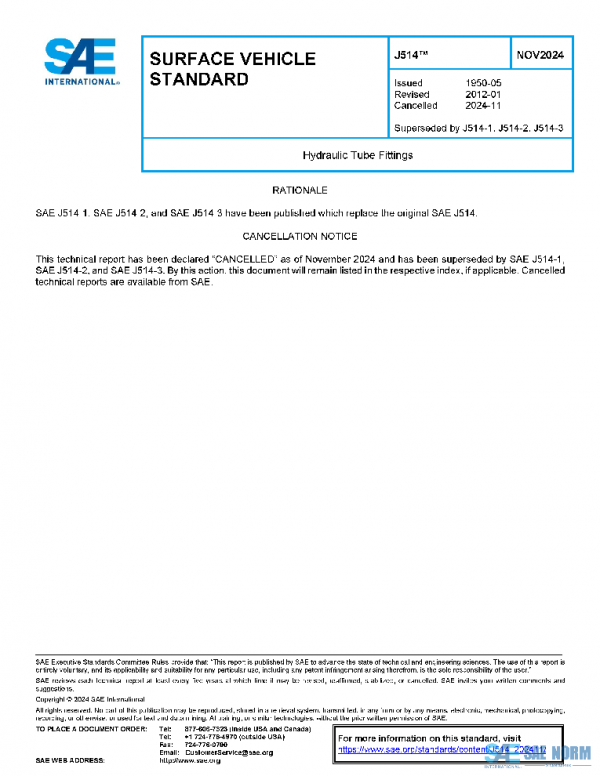

SAE J514_202411 PDF
Original price was: $163.00.$92.91Current price is: $92.91.
Hydraulic Tube Fittings(Cancelled Nov 2024)
Description
This SAE Standard covers complete general and dimensional specifications for 37 degree flared and flareless types of hydraulic tube fittings and O-ring plugs. Also included are pipe fittings and adapter unions for use in conjunction with these tube fittings. These fittings are intended for general application in hydraulic systems on industrial equipment and commercial products.
These fittings are capable of providing leakproof, full flow connections in hydraulic systems operating at working pressures as specified in Table 1 for respective sections.
Since many factors influence the pressure at which a hydraulic system will or will not perform satisfactorily, the values shown in SAE J1065 should not be construed as a guaranteed minimum.
For any application, it is recommended that sufficient testing be conducted and reviewed by both the user and fitting manufacturer to assure that performance levels will be safe and satisfactory.
History
| J514_202411 | 2024-11-22 | Latest | Canceled |
| J514_201201 | 2012-01-06 | Historical | Revised |
| J514_200409 | 2004-09-29 | Historical | Revised |
| J514_200107 | 2001-07-31 | Historical | Revised |
| J514_199904 | 1999-04-01 | Historical | Revised |
| J514_199806 | 1998-06-01 | Historical | Revised |
| J514_199606 | 1996-06-01 | Historical | Revised |
| J514_199506 | 1995-06-01 | Historical | Revised |
| J514_199407 | 1994-07-01 | Historical | Revised |
| J514_199306 | 1993-06-01 | Historical | Revised |
| J514_199206 | 1992-06-01 | Historical | Revised |
| J514_199106 | 1991-06-01 | Historical | Revised |
| J514_198906 | 1989-06-01 | Historical | Revised |
| J514_198004 | 1980-04-01 | Historical | Revised |
| J514J_197805 | 1978-05-01 | Historical | Revised |
| J514H_197504 | 1975-04-01 | Historical | Revised |
| J514F_197303 | 1973-03-01 | Historical | Revised |
| ISSUING COMMITTEE | Hydraulic Tube Fittings Committee |
|---|---|
| DATE | 2024-11-22 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 55 |
| PUBLISHER | SAE International |
| REVISED | CANCELLED |
Please select a variation to view its pdf.
