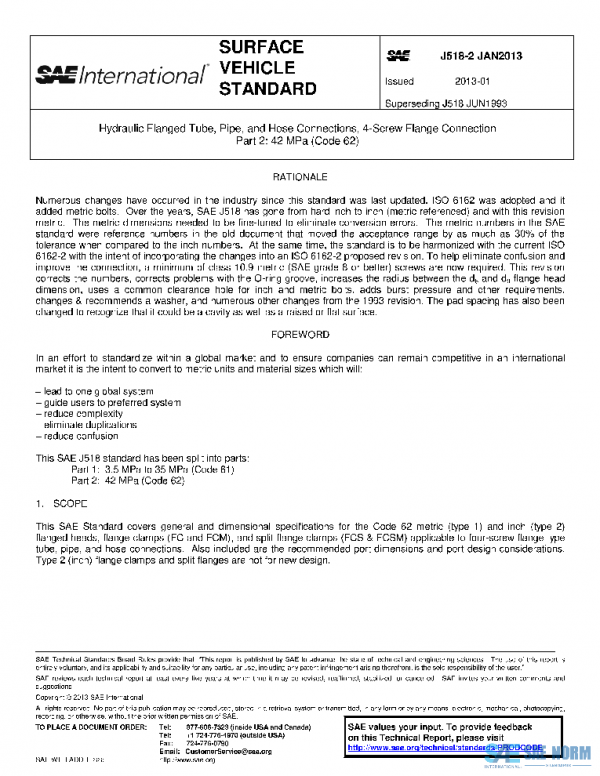

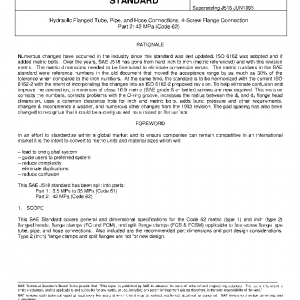

SAE J518/2_201301 PDF
Original price was: $113.00.$64.41Current price is: $64.41.
Hydraulic Flanged Tube, Pipe, and Hose Connections, 4-Screw Flange Connection Part 2: 42 MPa (Code 62)
Description
This SAE Standard covers general and dimensional specifications for the Code 62 metric (type 1) and inch (type 2) flanged heads, flange clamps (FC and FCM), and split flange clamps (FCS & FCSM) applicable to four-screw flange type tube, pipe, and hose connections. Also included are the recommended port dimensions and port design considerations. Type 2 (inch) flange clamps and split flanges are not for new design.
The flange heads specified are incorporated into fittings having suitable means for attachment of tubes, pipes, or hoses to provide connection ends. These connections are intended for application in hydraulic systems, on industrial and commercial products, where it is desired to avoid the use of threaded connections.
The rated working pressure of an assembly shall not exceed the least of all the component working pressure rated values.
The following general specifications supplement the dimensional data contained in the tables with respect to all unspecified detail. Parts manufactured to this standard are interchangeable with ISO 6162-2 and connectors to either standard can be supplied.
History
| J518/2_202312 | 2023-12-26 | Latest | Revised |
| J518/2_201704 | 2017-04-13 | Historical | Revised |
| J518/2_201301 | 2013-01-02 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Hose and Hose Fittings Committee |
|---|---|
| DATE | 2013-01-02 |
| DOI | |
| PAGE | 15 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
