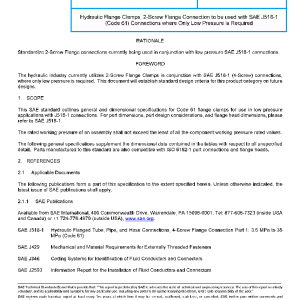

SAE J518/3_201511 PDF
Original price was: $91.00.$51.87Current price is: $51.87.
Hydraulic Flange Clamps, 2-Screw Flange Connection to be used with SAE J518-1 (Code 61) Connections where Only Low Pressure is Required
Description
This SAE standard outlines general and dimensional specifications for Code 61 flange clamps for use in low pressure applications with J518-1 connections. For port dimensions, port design considerations, and flange head dimensions, please refer to SAE J518-1.
The rated working pressure of an assembly shall not exceed the least of all the component working pressure rated values.
The following general specifications supplement the dimensional data contained in the tables with respect to all unspecified detail. Parts manufactured to this standard are also compatible with ISO 6162-1 port connections and flange heads.
History
| J518/3_202108 | 2021-08-12 | Latest | Revised |
| J518/3_201511 | 2015-11-24 | Historical | Issued |
| ISSUING COMMITTEE | Hydraulic Hose and Hose Fittings Committee |
|---|---|
| DATE | 2015-11-24 |
| DOI | |
| PAGE | 9 |
| PUBLISHER | SAE International |
| REVISED | ISSUED |
