SAE J533A_196406 PDF
Original price was: $50.00.$28.50Current price is: $28.50.
FLARES FOR TUBING
Description

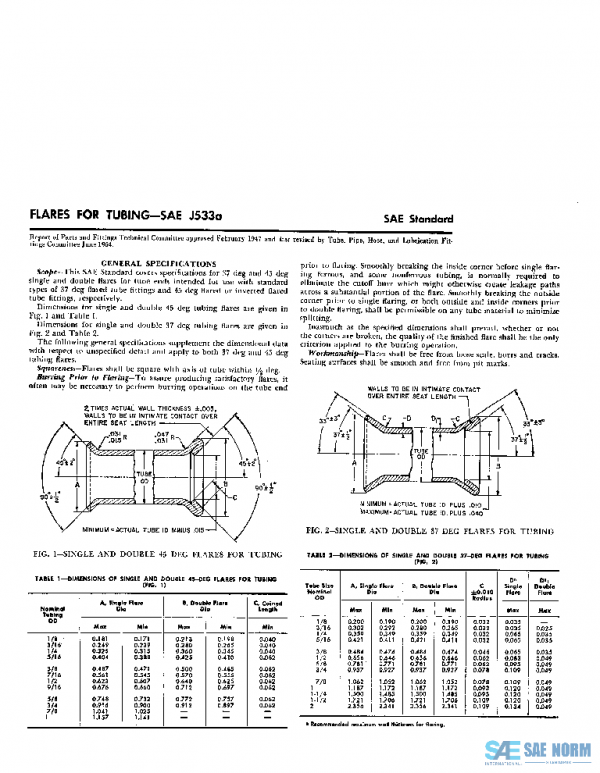

This SAE Standard covers specifications for 37 deg and 45 deg single and double flares for tube ends intended for use with standard types of 37 deg flared tube fittings and 45 deg flared or inverted flared tube fittings, respectively.
Dimensions for single and double 45 deg tubing flares are given in Fig. 1 and Table I.
Dimensions for single and double 37 deg tubing flares are given in Fig. 2 and Table 2.
The following general specifications supplement the dimensional data with respect to unspecified detail and apply to both 37 deg and 45 deg tubing flares.
