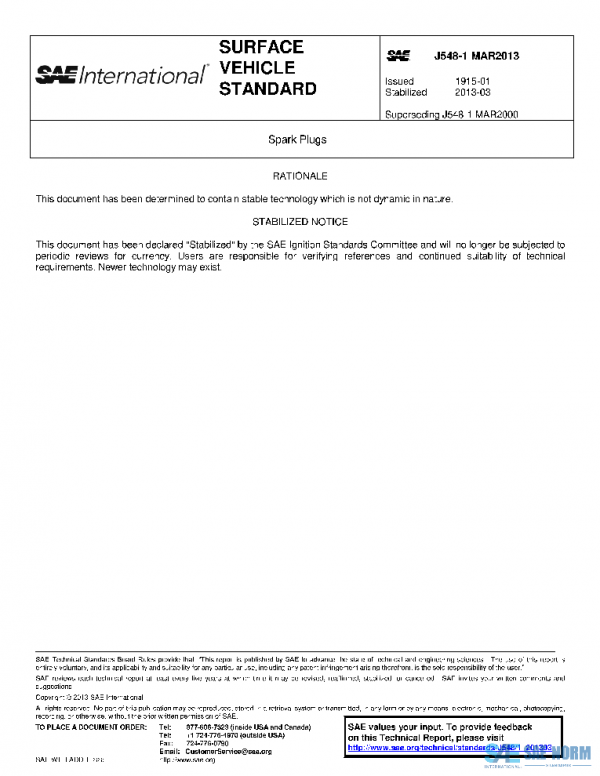

SAE J548/1_201303 PDF

Description

This SAE Standard applies only to spark plugs used for ground vehicles and stationary engines.
This document is intended to serve as a guide to dimensions common to the majority of current production spark plugs and future applications. It is not the intent of this document to prohibit the manufacture of spark plugs having dimensions differing from those presented. Many applications exist which require specialized or nonstandard spark plugs. It is recommended that this document be used in spark plug design and engine applications wherever possible. Whenever design situations arise that prevent the use of one of these standard spark plugs, a spark plug manufacturer should be contacted for guidance.
Figures 1 to 13 and Tables 1A to 6 show typical configurations of unshielded and shielded spark plug designs, their dimensional characteristics, installation, threaded hole, and spark plug thread sizes.
