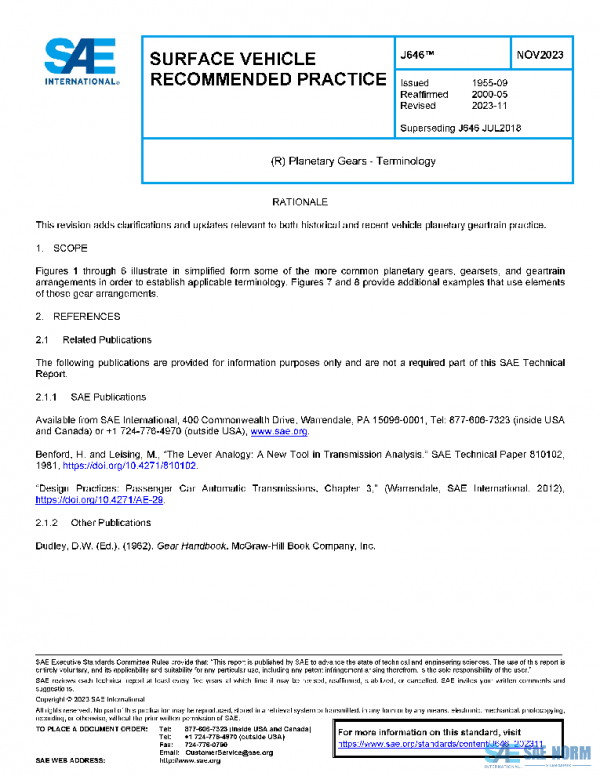

SAE J646_202310 PDF
Original price was: $69.00.$39.33Current price is: $39.33.
Planetary Gears – Terminology
Description
Figures 1 through 6 illustrate in simplified form some of the more common planetary gears, gearsets, and geartrain arrangements in order to establish applicable terminology. Figures 7 and 8 provide additional examples that use elements of those gear arrangements.
History
| J646_202310 | 2023-10-31 | Latest | Revised |
| J646_201807 | 2018-07-12 | Historical | Revised |
| J646_201104 | 2011-04-04 | Historical | Revised |
| J646_200005 | 2000-05-16 | Historical | Reaffirmed |
| J646_198812 | 1988-12-01 | Historical | Reaffirmed |
| J646_198308 | 1983-08-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | Automatic Transmission and Transaxle Committee |
|---|---|
| DATE | 2023-10-31 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 5 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
