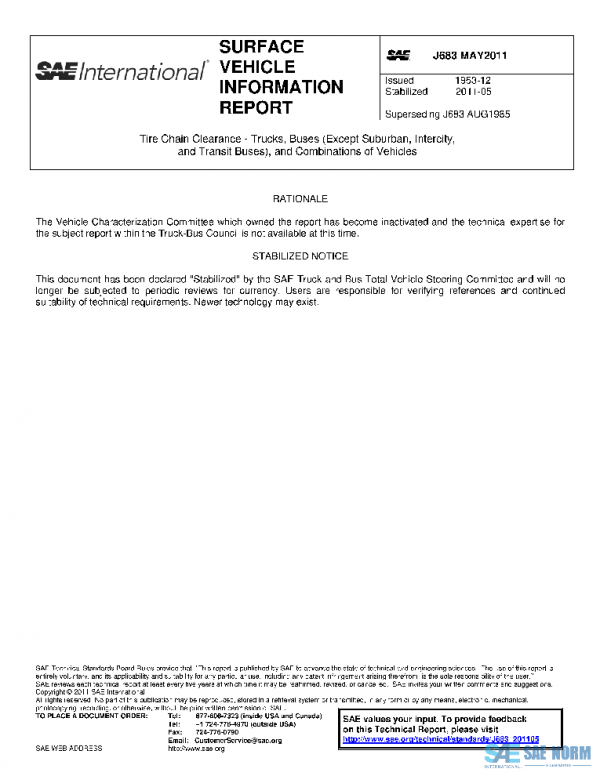

SAE J683_201105 PDF
Original price was: $54.00.$30.78Current price is: $30.78.
Tire Chain Clearance – Trucks, Buses (Except Suburban, Intercity, and Transit Buses), and Combinations of Vehicles(STABILIZED May 2011)
Description
The purpose of this SAE Information Report is to set up a guide as to body, frame, and wheel housing clearance to accommodate tire chains, and also the minimum bogie spacing to permit using chains on both axles. These dimensions apply to trucks, buses, and combinations of vehicles 10 001 lb (4535.06 kg) GVW and over, and are based upon recommendations of the Tire and Rim Association and of the National Association of Chain Manufacturers. The diagram shows clearance for chains over the tire ONLY and allowance must be made for spring deflections in determining fender clearance. See Figure 1 and Table 1.
History
| J683_201105 | 2011-05-17 | Latest | Stabilized |
| J683_198508 | 1985-08-01 | Historical | Revised |
| J683A_197505 | 1975-05-01 | Historical | Revised |
| ISSUING COMMITTEE | Truck and Bus Total Vehicle Steering Committee |
|---|---|
| DATE | 2011-05-17 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 3 |
| PUBLISHER | SAE International |
| REVISED | STABILIZED |
