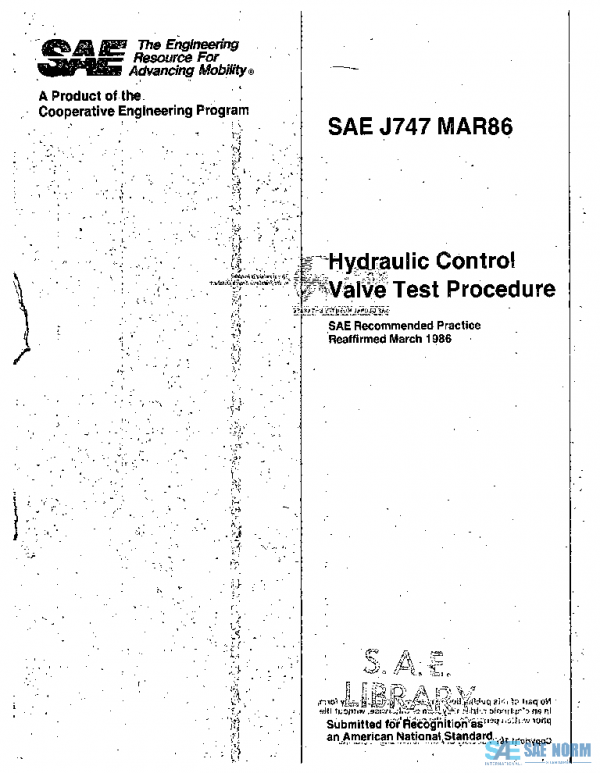

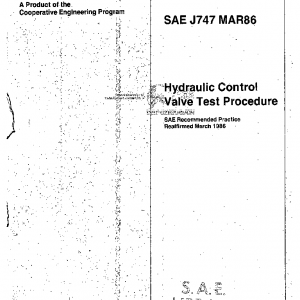

SAE J747_198603 PDF
Original price was: $110.00.$62.70Current price is: $62.70.
HYDRAULIC CONTROL VALVE TEST PROCEDURE
Description
This procedure describes laboratory tests for establishing operating characteristics of hydraulic directional control valves used on mobile industrial and construction equipment as referenced in SAE J1116. These characteristics are to be recorded on data sheets similar to those shown herein. Two sets of data are to be submitted–one at 122°F (50°C) and one at 194°F (90°C). A separate set of data sheets is to be submitted for the cylinder ports closest to, and farthest from the inlet and outlet ports of a multiple section valve.
History
| J747_202310 | 2023-10-18 | Latest | Reaffirmed |
| J747_201711 | 2017-11-27 | Historical | Revised |
| J747_199005 | 1990-05-01 | Historical | Revised |
| J747_198603 | 1986-03-01 | Historical | Reaffirmed |
| J747B_197410 | 1974-10-01 | Historical | Revised |
| ISSUING COMMITTEE | CTTC C1, Hydraulic Systems |
|---|---|
| DATE | 1986-03-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 14 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
