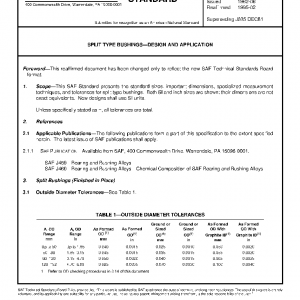

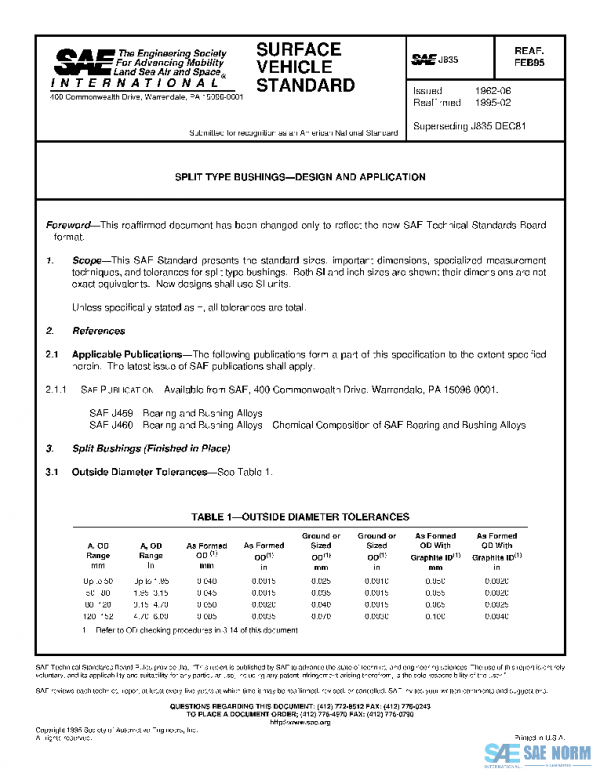

SAE J835_199502 PDF

Name: SAE J835_199502 PDF
SKU: 118267
Availability: InStock

Original price was: $118.00.Current price is: $67.26.

SPLIT TYPE BUSHINGS—DESIGN AND APPLICATION

Category: J Tags: Alloys, Aluminum, Aluminum alloys, Coatings, colorants, and finishes, Copper alloys, Manufacturing processes, Steel, Tin alloys

Guaranteed Safe Checkout

Description

This SAE Standard presents the standard sizes, important dimensions, specialized measurement techniques, and tolerances for split type bushings. Both SI and inch sizes are shown; their dimensions are not exact equivalents. New designs shall use SI units.
Unless specifically stated as ±, all tolerances are total.

History

J835_201106	2011-06-13	Latest	Stabilized
J835_199502	1995-02-01	Historical	Reaffirmed
J835_198112	1981-12-01	Historical	Revised

ISSUING COMMITTEE	SAE IC Powertrain Steering Committee
DATE	1995-02-01
DOI	https://doi.org/10.4271/J835_199502
ISCURRENT
PAGE	17
PUBLISHER	SAE International
REVISED	REAFFIRMED
