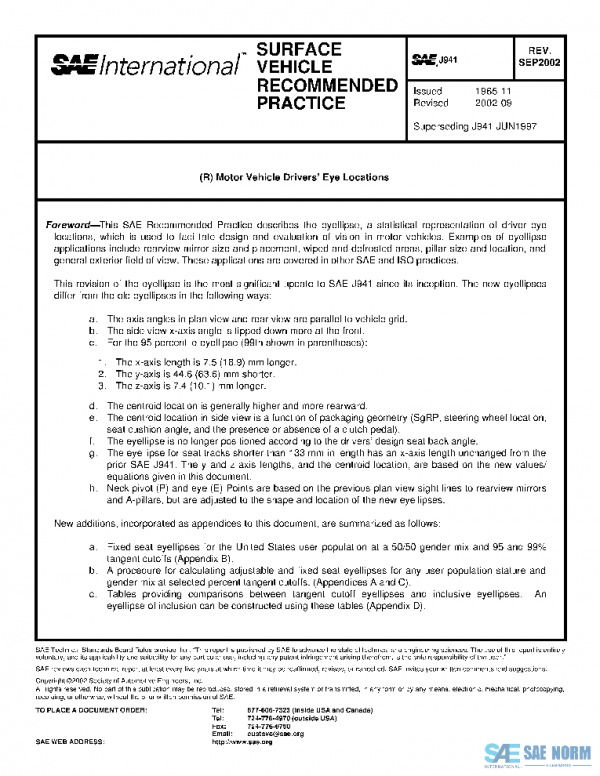

SAE J941_200209 PDF
Original price was: $146.00.$83.22Current price is: $83.22.
Motor Vehicle Drivers’ Eye Locations
Description
This SAE Recommended Practice establishes the location of drivers’ eyes inside a vehicle. Elliptical (eyellipse) models in three dimensions are used to represent tangent cutoff percentiles of driver eye locations.
Procedures are provided to construct 95 and 99% tangent cutoff eyellipses for a 50/50 gender mix, United States user population.
Neck pivot (P) points are defined in Section 6 to establish specific left and right eye points for direct and indirect viewing tasks described in SAE J1050. These P Points are defined only for the adjustable seat eyellipses defined in Section 4.
This document applies to Class A Vehicles (Passenger Cars, Multipurpose Passenger Vehicles, and Light Trucks) as defined in SAE J1100. It also applies to Class B vehicles (Heavy Trucks), although these eyellipses have not been updated from previous versions of SAE J941.
The appendices are provided for information only and are not a requirement of this document.
History
| J941_201003 | 2010-03-16 | Latest | Revised |
| J941_200810 | 2008-10-23 | Historical | Revised |
| J941_200801 | 2008-01-23 | Historical | Revised |
| J941_200209 | 2002-09-30 | Historical | Revised |
| J941_199706 | 1997-06-19 | Historical | Reaffirmed |
| J941_199206 | 1992-06-01 | Historical | Revised |
| J941_198510 | 1985-10-01 | Historical | Revised |
| J941_196511 | 1965-11-01 | Historical | Issued |
| J941E_197703 | 1977-03-01 | Historical | Revised |
| J941D_197502 | 1975-02-01 | Historical | Revised |
| J941C_197206 | 1972-06-01 | Historical | Revised |
| J941B_196902 | 1969-02-01 | Historical | Revised |
| J941A_196708 | 1967-08-01 | Historical | Revised |
| ISSUING COMMITTEE | Driver Vision Standards Committee |
|---|---|
| DATE | 2002-09-30 |
| DOI | |
| ISCURRENT | |
| PAGE | 33 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
