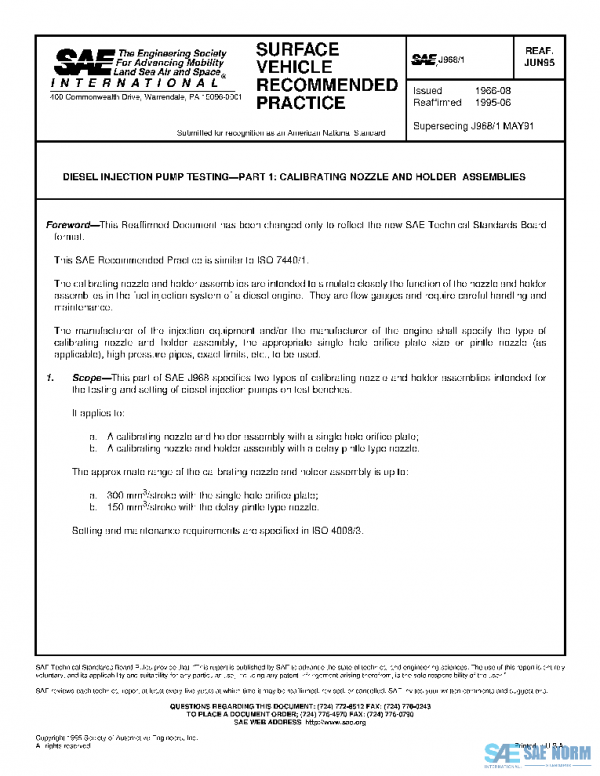

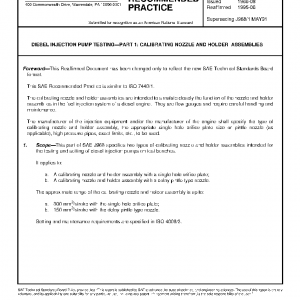

SAE J968/1_199506 PDF
Original price was: $110.00.$62.70Current price is: $62.70.
DIESEL INJECTION PUMP TESTING—PART 1: CALIBRATING NOZZLE AND HOLDER ASSEMBLIES
Description
This part of SAE J968 specifies two types of calibrating nozzle and holder assemblies intended for the testing and setting of diesel injection pumps on test benches.
It applies to:
a
A calibrating nozzle and holder assembly with a single hole orifice plate;
b
A calibrating nozzle and holder assembly with a delay pintle type nozzle.
The approximate range of the calibrating nozzle and holder assembly is up to:
a
300 mm3/stroke with the single hole orifice plate;
b
150 mm3/stroke with the delay pintle type nozzle.
Setting and maintenance requirements are specified in ISO 4008/3.
History
| J968/1_202103 | 2021-03-17 | Latest | Reaffirmed |
| J968/1_201509 | 2015-09-22 | Historical | Reaffirmed |
| J968/1_200212 | 2002-12-20 | Historical | Reaffirmed |
| J968/1_199506 | 1995-06-27 | Historical | Reaffirmed |
| J968/1_199105 | 1991-05-01 | Historical | Revised |
| ISSUING COMMITTEE | Diesel Fuel Injection Equipment Standards Committee |
|---|---|
| DATE | 1995-06-27 |
| DOI | |
| PAGE | 14 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
