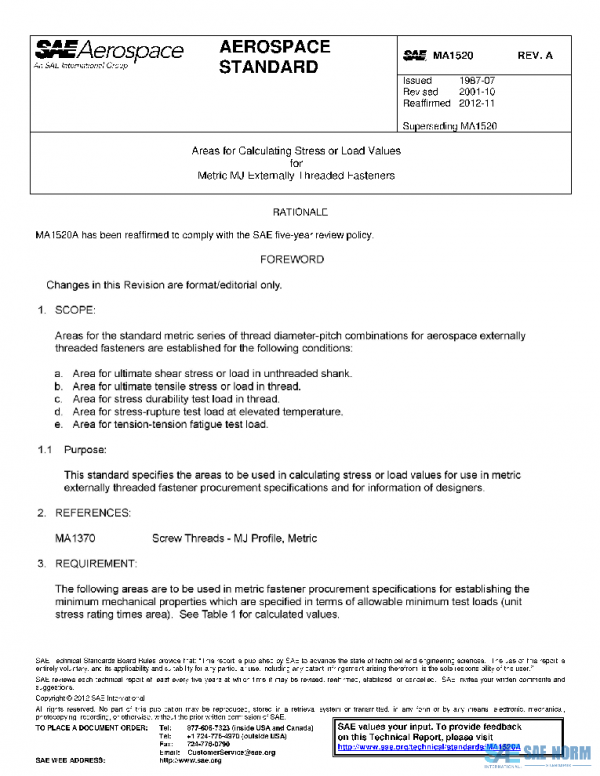

SAE MA1520A PDF
Original price was: $62.00.$35.34Current price is: $35.34.
Areas for Calculating Stress or Load Values for Metric MJ Externally Threaded Fasteners
Description
Areas for the standard metric series of thread diameter-pitch combinations for aerospace externally threaded fasteners are established for the following conditions:
a
Area for ultimate shear stress or load in unthreaded shank.
b
Area for ultimate tensile stress or load in thread.
c
Area for stress durability test load in thread.
d
Area for stress-rupture test load at elevated temperature.
e
Area for tension-tension fatigue test load.
History
| MA1520B | 2019-05-03 | Latest | Stabilized |
| MA1520A | 2018-08-23 | Historical | Reaffirmed |
| MA1520 | 1987-07-01 | Historical | Issued |
| ISSUING COMMITTEE | E-25 General Standards for Aerospace and Propulsion Systems |
|---|---|
| DATE | 2018-08-23 |
| DOI | |
| ISCURRENT | |
| PAGE | 4 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
