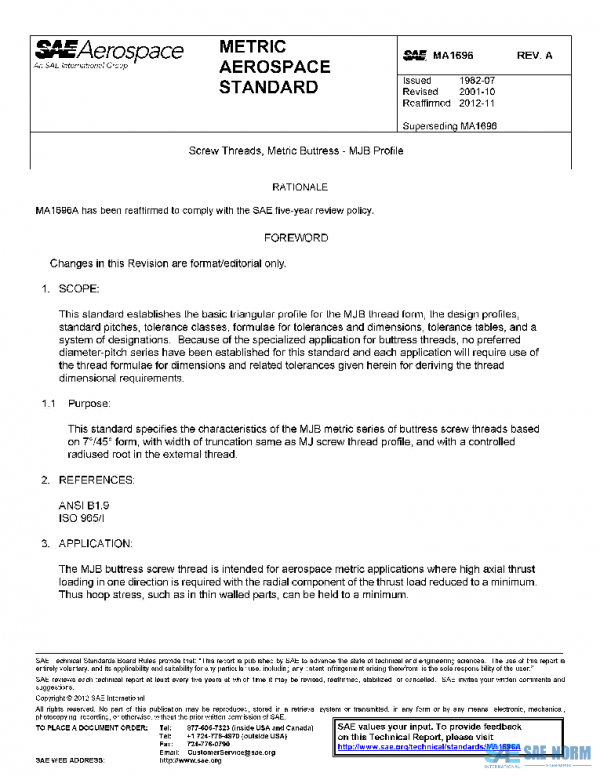

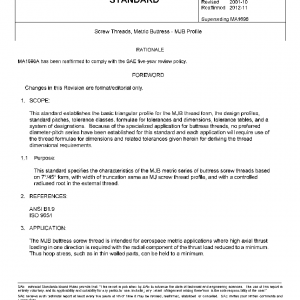

SAE MA1696A PDF
Original price was: $131.00.$74.67Current price is: $74.67.
Screw Threads, Metric Buttress – MJB Profile
Description
This standard establishes the basic triangular profile for the MJB thread form, the design profiles, standard pitches, tolerance classes, formulae for tolerances and dimensions, tolerance tables, and a system of designations. Because of the specialized application for buttress threads, no preferred diameter-pitch series have been established for this standard and each application will require use of the thread formulae for dimensions and related tolerances given herein for deriving the thread dimensional requirements.
History
| MA1696B | 2019-01-03 | Latest | Stabilized |
| MA1696A | 2012-11-08 | Historical | Reaffirmed |
| MA1696 | 1995-05-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | E-25 General Standards for Aerospace and Propulsion Systems |
|---|---|
| DATE | 2012-11-08 |
| DOI | |
| ISCURRENT | |
| PAGE | 23 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
