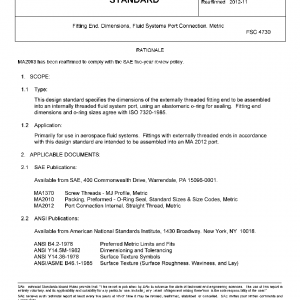

SAE MA2093 PDF
Original price was: $54.00.$30.78Current price is: $30.78.
Fitting End, Dimensions, Fluid Systems Port Connection, Metric
Description
This design standard specifies the dimensions of the externally threaded fitting end to be assembled into an internally threaded fluid system port, using an elastomeric o-ring for sealing. Fitting end dimensions and o-ring sizes agree with ISO 7320-1985.
History
| MA2093A | 2023-08-01 | Latest | Stabilized |
| MA2093 | 2012-11-08 | Historical | Reaffirmed |
| ISSUING COMMITTEE | G-3, Aerospace Couplings, Fittings, Hose, Tubing Assemblies |
|---|---|
| DATE | 2012-11-08 |
| DOI | |
| ISCURRENT | |
| PAGE | 3 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
