Metric Stud Holes for Aerospace Electrical and Electronic Wire Terminating Devices
Description

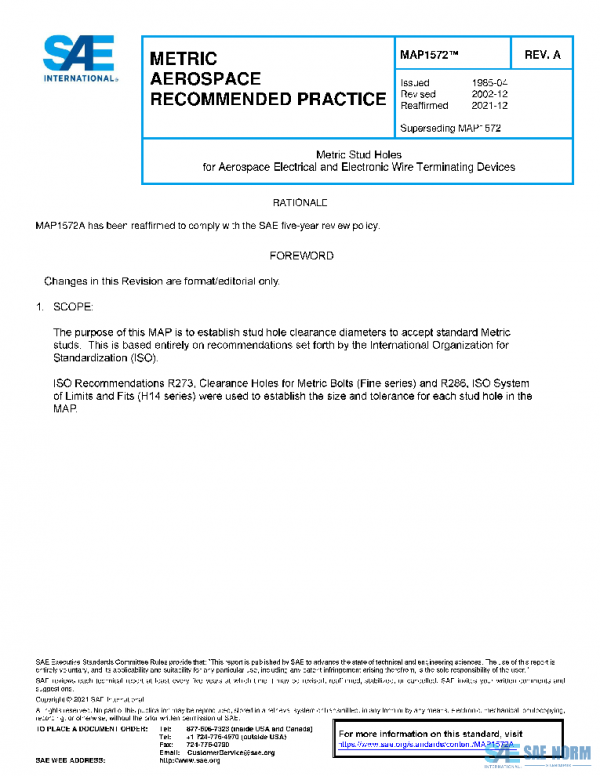

The purpose of this MAP is to establish stud hole clearance diameters to accept standard Metric studs. This is based entirely on recommendations set forth by the International Organization for Standardization (ISO).
ISO Recommendations R273, Clearance Holes for Metric Bolts (Fine series) and R286, ISO System of Limits and Fits (H14 series) were used to establish the size and tolerance for each stud hole in the MAP.
History
| MAP1572A | 2021-12-27 | Latest | Reaffirmed |
| MAP1572 | 1990-10-01 | Historical | Reaffirmed |
| ISSUING COMMITTEE | AE-8C2 Terminating Devices and Tooling Committee |
|---|---|
| DATE | 2021-12-27 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 2 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
