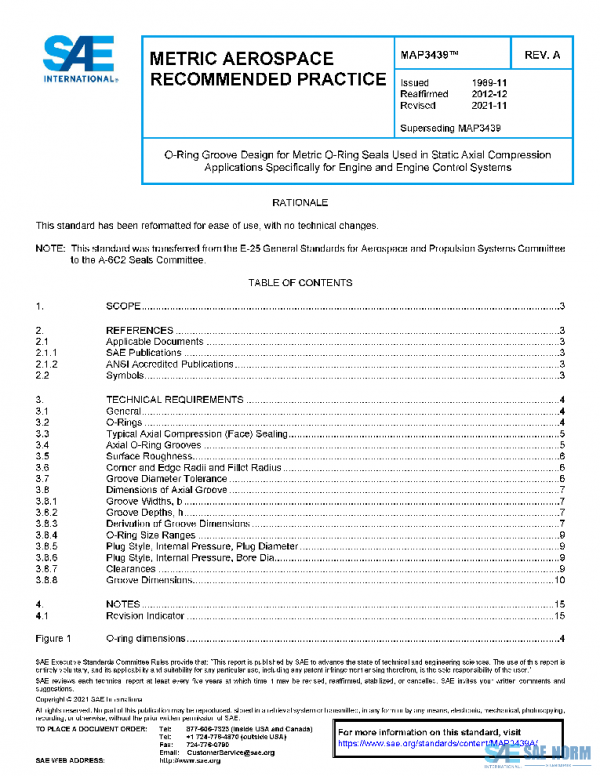

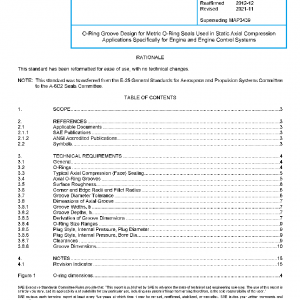

SAE MAP3439A PDF
Original price was: $113.00.$64.41Current price is: $64.41.
O-Ring Groove Design for Metric O-Ring Seals Used in Static Axial Compression Applications Specifically for Engine and Engine Control Systems
Description
This recommended practice provides the design criteria for static elastomeric O-ring seals used specifically in engine and engine control systems. It provides axial compression (face type) groove dimensions for aerospace metric O-ring sizes specified in MA2010. The conditions considered to formulate the design criteria are also described, e.g., seal squeeze and groove volume to accommodate O-ring swell.
NOTE: Tables of O-ring groove dimensions are included based on the design criteria specified herein. Dimensions in this document are in millimeters unless otherwise specified.
History
| MAP3439A | 2021-11-23 | Latest | Revised |
| MAP3439 | 2012-12-10 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C2 Seals Committee |
|---|---|
| DATE | 2021-11-23 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 15 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
