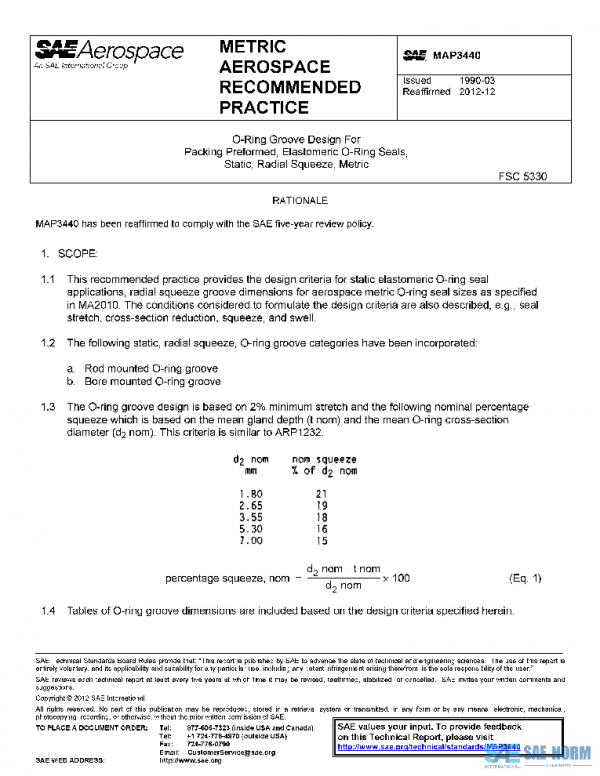

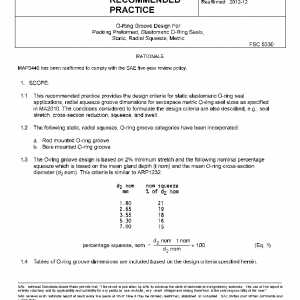

SAE MAP3440 PDF
Original price was: $141.00.$80.37Current price is: $80.37.
O-Ring Groove Design For Packing Preformed, Elastomeric O-Ring Seals, Static, Radial Squeeze, Metric
Description
This recommended practice provides the design criteria for static elastomeric O-ring seal applications, radial squeeze groove dimensions for aerospace metric O-ring seal sizes as specified in MA2010. The conditions considered to formulate the design criteria are also described, e.g., seal stretch, cross-section reduction, squeeze, and swell.
History
| MAP3440A | 2021-11-09 | Latest | Revised |
| MAP3440 | 2012-12-10 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C2 Seals Committee |
|---|---|
| DATE | 2012-12-10 |
| DOI | |
| ISCURRENT | |
| PAGE | 29 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
