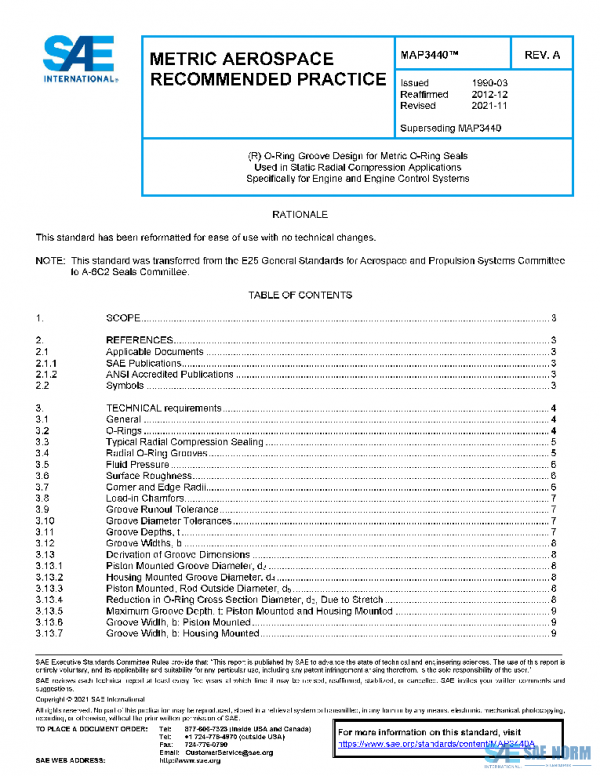

SAE MAP3440A PDF
Original price was: $142.00.$80.94Current price is: $80.94.
O-Ring Groove Design for Metric O-Ring Seals Used in Static Radial Compression Applications Specifically for Engine and Engine Control Systems
Description
This SAE Recommended Practice provides the design criteria for static elastomeric O-ring seals used specifically in engine and engine control systems. It provides radial compression groove dimensions for aerospace metric O-ring sizes specified in MA2010. The conditions considered to formulate the design criteria are also described, e.g., seal stretch, cross-section reduction, seal squeeze, and swell.
History
| MAP3440A | 2021-11-09 | Latest | Revised |
| MAP3440 | 2012-12-10 | Historical | Reaffirmed |
| ISSUING COMMITTEE | A-6C2 Seals Committee |
|---|---|
| DATE | 2021-11-09 |
| DOI | |
| ISCURRENT | Current |
| PAGE | 30 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
