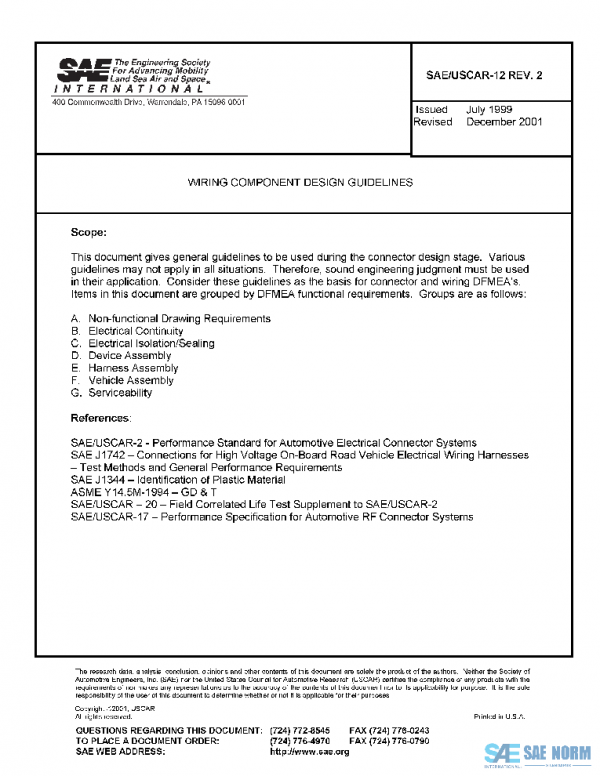

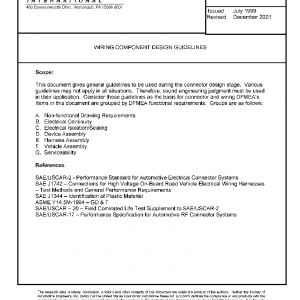

SAE USCAR12 PDF
Original price was: $118.00.$67.26Current price is: $67.26.
WIRING COMPONENT DESIGN GUIDELINES
Description
This document gives general guidelines to be used during the connector design stage. Various guidelines may not apply in all situations. Therefore, sound engineering judgment must be used in their application. Consider these guidelines as the basis for connector and wiring DFMEA’s. Items in this document are grouped by DFMEA functional requirements. Groups are as follows:
A
Non-functional Drawing Requirements
B
Electrical Continuity
C
Electrical Isolation/Sealing
D
Device Assembly
E
Harness Assembly
F
Vehicle Assembly
G
Serviceability
History
| USCAR12-6 | 2021-01-20 | Latest | Revised |
| USCAR12-5 | 2017-08-17 | Historical | Revised |
| USCAR12-4 | 2016-02-12 | Historical | Revised |
| USCAR12-3 | 2009-07-10 | Historical | Issued |
| USCAR12-2 | 2001-12-01 | Historical | Issued |
| USCAR12 | 1999-07-01 | Historical | Issued |
| ISSUING COMMITTEE | USCAR |
|---|---|
| DATE | 1999-07-01 |
| DOI | |
| ISCURRENT | |
| PAGE | 17 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
