SAE USCAR18-2 PDF
Original price was: $86.00.$49.02Current price is: $49.02.

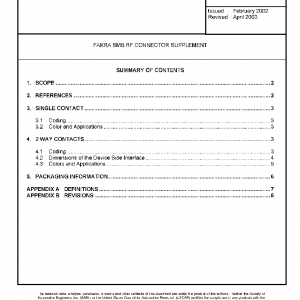

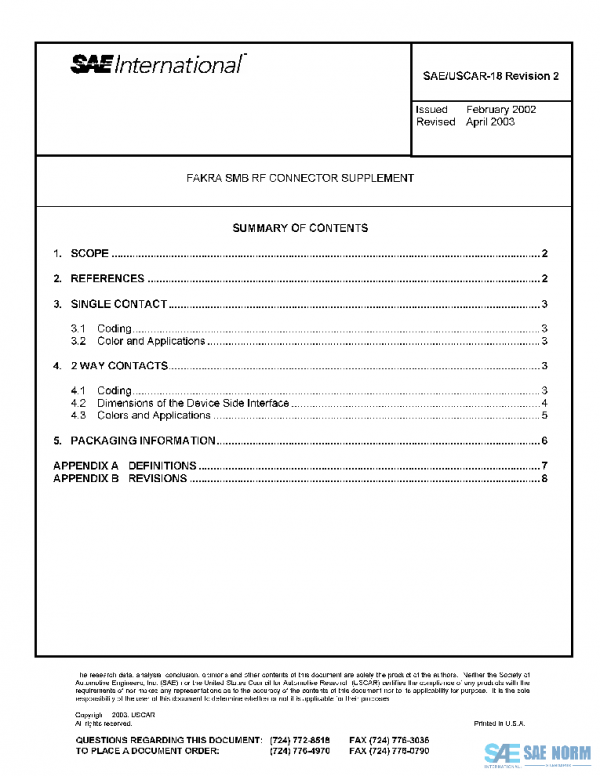

FAKRA SMB RF CONNECTOR SUPPLEMENT
Description
This document is a supplement to DIN 72594 and is intended to give recommended usages for one and two way connectors and dimensional requirements for 2-way connectors which are not currently specified by DIN. The radio frequency (RF) connector interface specified herein is suited for unsealed automobile applications up to 3 GHz and is intended for in-line, board mount, device mount, straight or angled applications. Dimensional requirements are specified in this document to ensure interchangeability. Performance requirements are specified in SAE/USCAR-2, and in SAE/USCAR-17.
History
| USCAR18-5 | 2023-07-10 | Latest | Stabilized |
| USCAR18-4 | 2016-07-21 | Historical | Revised |
| USCAR18-3 | 2011-12-06 | Historical | Revised |
| USCAR18-2 | 2003-06-04 | Historical | Issued |
| USCAR18 | 2002-02-21 | Historical | Issued |
| ISSUING COMMITTEE | USCAR |
|---|---|
| DATE | 2003-06-04 |
| DOI | |
| PAGE | 8 |
| PUBLISHER | SAE International |
| REVISED | REVISED |
