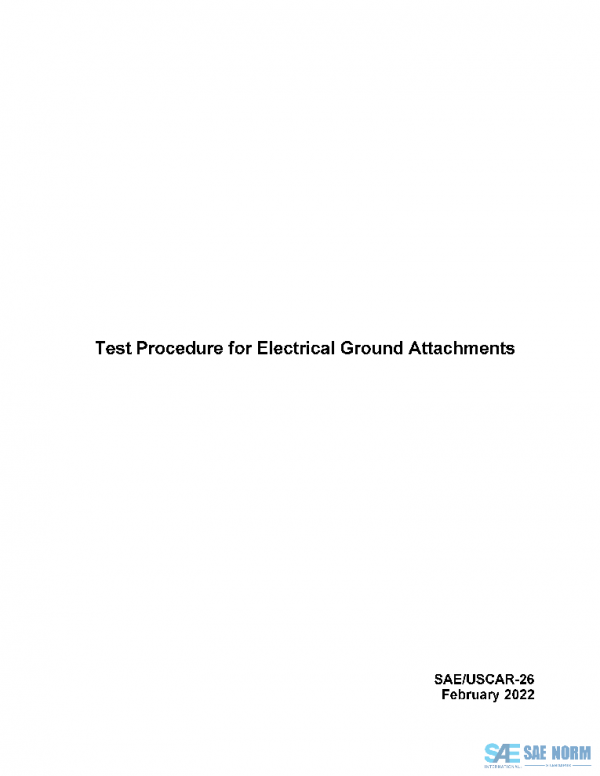

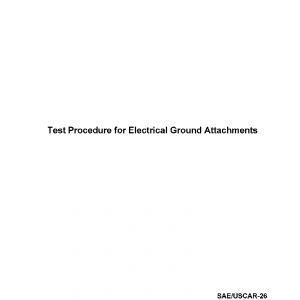

SAE USCAR26 PDF
Original price was: $103.00.$58.71Current price is: $58.71.
TEST PROCEDURE FOR ELECTRICAL GROUND ATTACHMENTS
Description
This test procedure is intended to evaluate and/or validate electrical ground schemes for use on the body or chassis. There are two classes based on the expected environmental conditions. Exposed Grounds can be located anywhere in the vehicle (except on the powertrain) and is the class for which most schemes should be tested. Unexposed Grounds can only be used in the passenger compartment or trunk and as such are special cases.
This procedure as written is not intended for testing powertrain grounds where high temperatures and vibration levels may be encountered. These situations may require modifications to this procedure and are left to the Responsible Engineer to determine.
This specification does not specifically address validation of terminal to wire electrical crimps. Crimps are tested to SAE/USCAR-21
History
| USCAR26-1 | 2023-07-10 | Latest | Stabilized |
| USCAR26 | 2022-02-25 | Historical | Reaffirmed |
| ISSUING COMMITTEE | USCAR |
|---|---|
| DATE | 2022-02-25 |
| DOI | |
| ISCURRENT | |
| PAGE | 12 |
| PUBLISHER | SAE International |
| REVISED | REAFFIRMED |
